CAN Display Module

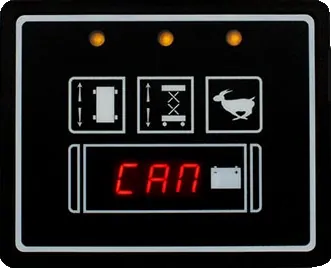

Trionic CAN Display Module

Product Highlights

With its compact design, it provides three momentary switches for user specific functions and three indicator LEDs, as well as several inputs and outputs for additional switches, sensors, lights, buzzers and joystick connectivity.

  • Three digit display shows battery charge status and fault codes to the operator
  • CANbus enabled
  • Compact design

General features

  • Analog inputs and switch inputs for joystick
  • Three momentary switches
  • Three 7 digits display
  • Three LED indicators
  • CANbus interface to main valve/motor control module minimizes cable wiring/size

Technical Data

Power Supply 12 / 24V 8.5 to 33 Vdc
Supply Output5V0.15A
Low Side Outputs31 Amps
Integrated LEDs3
Digital Inputs101.25Ω imp
Integrated input SWs3
Analog Inputs20.5V-4.5V
Working Temperature-40 + 60°C
Overall Dimensions4.375” x 3.563” x 1.19”
111 x 90 x 30 mm
