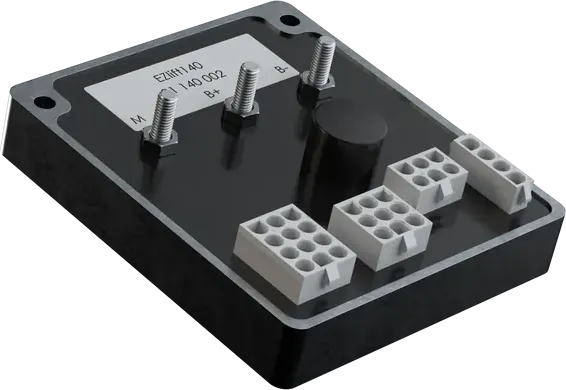

Trionic EZLift 140

Product Highlights

The EZLift 140 is a dedicated purpose integrated controller designed for push around AWP applications. The unit features up to a 3.4Kw pump motor control, a welded contactor protection and an integrated tilt sensor.

  • Up to 3.4Kw pump motor control static ON/OFF switch
  • Protection from welded line contactor
  • Integrated tilt sensor
  • Reduce wiring and simplify setups, adjustments, diagnostics
  • Meets EN280: 2014 requirements (i.e. armguard and overload)

General features

  • Provides protected High side PWM outputs
  • Provides Low side outputs
  • Integrated tilt sensor
  • RS232 to connect “EZcal” for calibrations, adjustments, and diagnostics
  • “FLASH” memory allows configuration to specific customer needs
  • Failsafe functionality to comply with EN 13849-1
  • Analog input for overload EN280 compliance

Technical Data

Power Supply 12 and 24V 8.5 to 17 Vdc
Pump motor current140A
PWM Output (high side)43A
Low side Outputs22A
Positive Digital Inputs101.25kΩ imp.
Analog input40 - 5V
Configurable digital I/O 2
Integral tilt sensor+/- 0 to 10°√(x2+y2)
Water Proof IP 67
Working Temperature

-40 +60°C

Overall Dimensions

5.1” x 4.47” x 1.52”

129 x 114 x 39 mm
