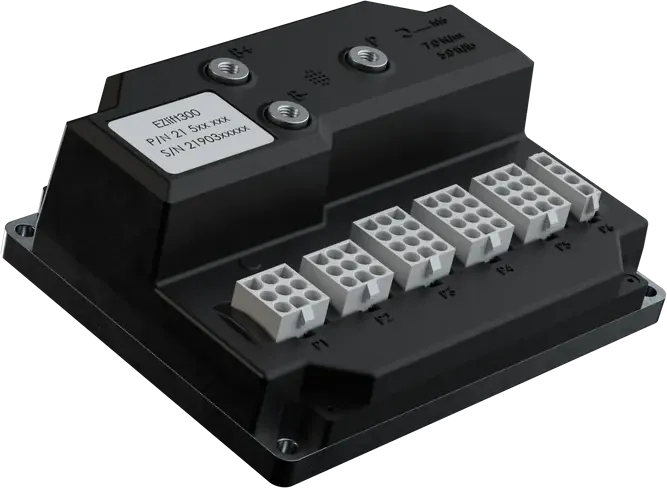

Trionic EZlift 300

Product Highlights

The EZlift300 is a dedicated purpose integrated vehicle management and motor controller commonly used in scissor lift applications.

  • 7.2 KW pump motor controller
  • Integrated tilt sensor
  • EN280 Compliant

General features

  • Integrated tilt sensor can be configured to limit or prevent selected functions when vehicle is tilted
  • Platform overload can be configured for EN280 compliance (requires pressure sensor and Dual EZfit height sensor
  • Flash memory allows factory configuration to exact vehicle needs
  • Inputs from platform joystick & switches (or ground mode emergency switches) control vehicle functions via protected valve & line contactor drivers
  • Inputs from various cutout switches can be configured to limit or prevent selected functions depending on vehicle state.
  • Dual micro-controller ensures failsafe operation
  • Available EZcal hand-held allows access to configuration settings and diagnostics including history log (via RS232)
  • All inputs & outputs can be tested with EZcal to identify wiring errors
  • Integral status LED provides (flashing) fault code indication

Optional: Text display module provides end-user status & fault descriptions to minimize down time

Technical Data

Power Supply 24V 8.5 to 33 Vdc
Continuous current300A
Peak current500A
PWM Frequency15Khz
Integral tilt sensor+/- 0 to 10°√(x2+y2)
High Side Output83A
PWM Output (high side)43A
Indicator outputs low side62A
Power output low side14A
Digital Inputs241.25kΩ imp.
Analog inputs60-5 VdC
Working Temperature

-40 +60°C

Overall Dimensions

7.09” x 5.4” x 2.7”

180 x 137 x 68 mm
