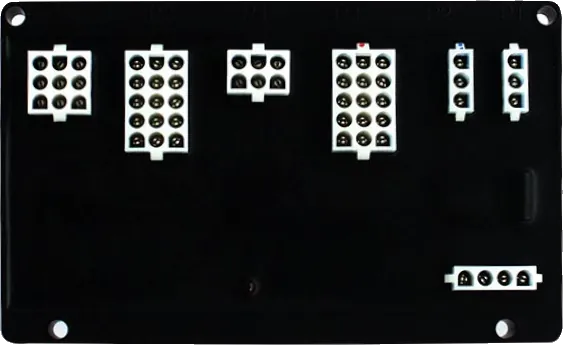

Trionic GP450

Product Highlights

The GP450 is an electronic controller for electric, hybrid, and IC industrial vehicles. For the Industrial
Vehicle OEM with a wide ranging product line the GP450 offers the ability to standardize and customize
their product line with a single machine controller for all vehicles.

It’s wide variety and numerous I/O
are sufficient for many vehicle designs.

If additional features are required, the OEM has the ability to
customize to each vehicles’ product requirements using CANbus.

For example it may command a
motor controller such as Trionic’s SEM600 or P600 or control I/O such as Trionic’s General Purpose
GP440 Platform I/O, GP Mini I/O, H-Bridge Module or, the Valve Current Control Module (VCCM) for
the precise control of control valves.

  • CANbus enabled Vehicle controller
  • IC, hybrid, and electric Powered Vehicles. Many I/O ...All types... High Side Digital Outputs, Analog, PWM, Digital Inputs

General features

  • Provides protected High side outputs
  • Provides PWM outputs
  • CANbus interface
  • RS232 connection to hand-held “EZcal” for diagnostics
  • “FLASH” memory allows configuration to specific customer needs
  • Failsafe functionality to comply with EN 954-3
    • Series-wired dual output switches from independent microprocessors
    • Detects short-circuit output switches

Technical Data

Power Supply 12/24V 8.5 to 33 Vdc
High Side Output5
PWM Output (high side)7
Low side Outputs2
Positive Digital Inputs171.25kΩ imp.
Analog Input70-5 V
Water proofIP 67
Working Temperature -40 +60°C
Overall Dimensions

7.3” x 4.5” x 1.5”
185 x 115 x 39 mm
