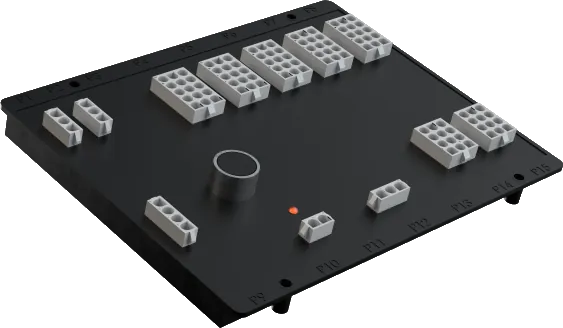

Trionic GP500

Product Highlights

The GP500 Electronic Control Module provides full functionality for control of a boom or scissor lift vehicle, including tilt, overload, and automatic outrigger functions.

Its built-in I/O may be expanded with additional CAN-connected modules to create a complete control system for any machine while reducing wiring.

  • Vehicle Master Controller with two independent CANbuses
  • IC & Battery Powered Vehicles
  • High I/O count...All types...High Side Digital Outputs, Analog, PWM, Digital Inputs, programmable I/O

Examples of complete GP500 - based Trionic Control Systems include:

  • GP500 alone for a simple IC machine
  • GP500 + P600 + Matrix for a 48v electric scissor
  • GP500 + GP442P600 + either a SEM600 or a DAC483 for a 48V Electric Drive

General features

  • Provides protected high side outputs with current measurements
  • Provides PWM outputs capable of Valve Current Control Mode (VCCM)
  • Provides fail-safe high side outputs
  • Integral vehicle tilt transducer, indicates tilted vehicle with optional cutout
  • Two CANbus interfaces
  • RS232 connection to hand-held “EZcal” for calibration and diagnostics
  • “FLASH” memory allows configuration to specific customer needs
  • Failsafe functionality to comply with EN 954-3

Technical Data

Power Supply 12/24V 8 to 33 Vdc
High Side Output16
PWM Output (high side)24
“Failsafe” Outputs (high side)4
0-5V Output1
Positive Digital Inputs321.25kΩ imp.
Negative Digital Input41.25kΩ imp.
Analog Input90-10 V
Integral Tilt Sensor+/- 0 to 10°√(x2+y2)
Water proofIP 67
Working Temperature -40 +60°C
Overall Dimensions

9.0” x 7.1” x 1.3”
229 x 181 x 33 mm
