Load Cell Interface Module

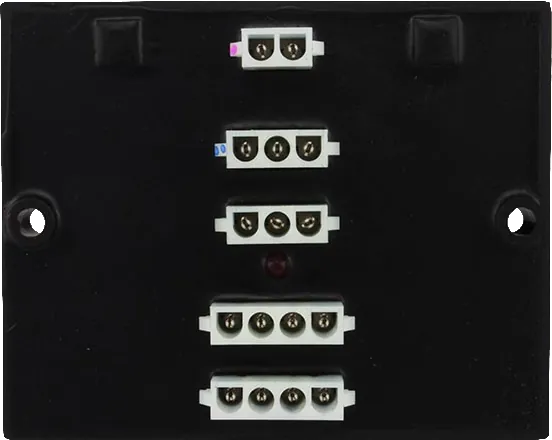

Trionic Load Cell Interface Module

Product Highlights

  • Dual Redundant Load Cell Interface Module
  • A CAN interface for two strain gauges or load cell
  • Allows system Controller to measure loads

General Features

  • Dual independent circuit to meet Cat 3 requirements
  • Two differential analog inputs from load cell
  • Dual CAN connector for easy insertion in the Bus
  • Protected CANbus
  • “FLASH” memory allows configuration to specific customer needs

Technical Data

Power Supply 12 / 24V 8.5 to 33 Vdc
Diff. Analog Inputs2±2-10 mV
Water proofIP67
Operating Temperature-40 +60°C
Overall Dimensions4.6” x 3.7” x 0.9”
117 x 94 x 23 mm
