Pressure Transducer

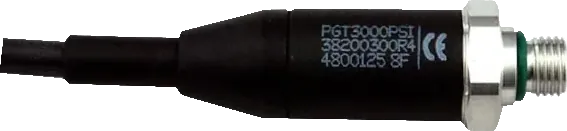

Trionic Pressure Transducer

General features

  • Wetted parts Stainless steel
  • Case highly resistive (PBT)
  • CE conformity EN61326
  • Water proof construction IP69K
  • Shock resistance 500g (DIN EN837)
  • Fully protected (reverse supply, output s/c, etc)

Technical Data

Pressure Range1250, 2000 & 3000 psi (86, 138 & 206 Bar)
Over pressure Safety2 X
Burst Pressure10 to 4.25 X
Response Time5ms max
Output Voltage Range0.5V to 4.5V for full scale
Supply Voltage (reverse protected) 10 to 36V DC
Operating Temp. Range-40 to +125 °C (Medium)
Compensated Temp. Range0 to 80 °C
