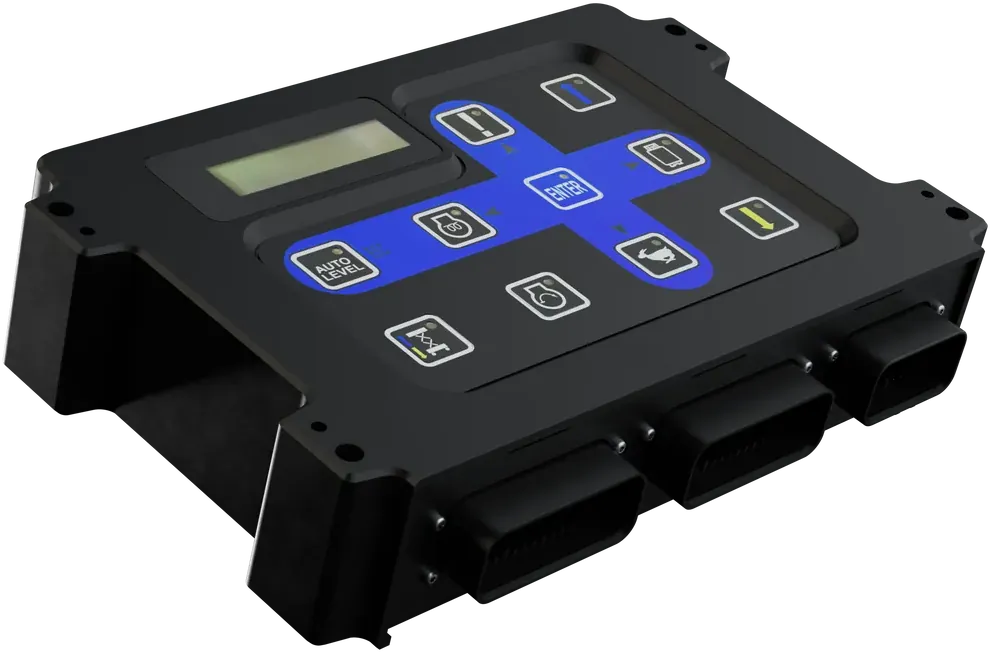

Trionic RT93 Vehicle Master Controller

Product Highlights

The RT93 Electronic Control Module provides full functionality for control of an AWP vehicle, integrated includes: display (with EZcal functionality), 10 switches, 14 indicators, tilt sensor, buzzer/alarm. Allows for complete machine control including overload and automatic outrigger functions.

  • Vehicle Master Controller with two independent CANbus
  • IC & Battery Powered Vehicles
  • High I/O count...All types...High Side Digital Outputs, Analog, PWM, Digital Inputs, programmable I/O

Optional: Embedded EZcal GO

Its built-in I/O may be expanded with additional CAN-connected modules to create a complete control system for any machine while reducing wiring.

General features

  • Provides protected high side outputs with current measure diagnostics
  • Provides PWM outputs capable of Valve Current Control Mode (VCCM)
  • Provides fail-safe high side outputs
  • Integral vehicle tilt sensor, buzzer, display, and operator controls
  • Two independent CANbus interfaces
  • “EZcal” integrated for calibration, adjustments, and diagnostics
  • “FLASH” memory allows configuration to specific customer needs

Failsafe functionality to comply with

Technical Data

Power Supply 12 / 24V 6 to 33 Vdc
High Side Output4
“Failsafe” Outputs (high side)36
0-5V Output1
LED Indicators10
Positive Digital Inputs351.25kΩ imp.
Negative Digital Input31.25kΩ imp.
Analog Inputs8
Integral tilt sensor+/- 0 to 10°√(x2+y2)
Integral Buzzer100 db
Water proofIP 66
Working Temperature

-40 +50°C

Overall Dimensions

10.4 x 7.2” x 2.2”

263 x 181 x 55 mm

Trionic RT93
